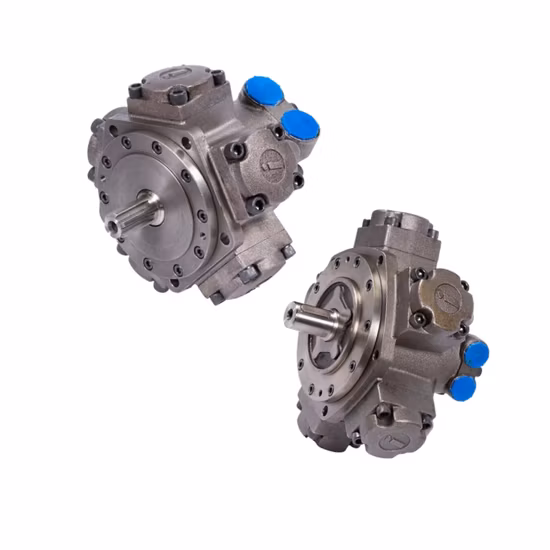

China Professional Supply Five Star Radial Hydraulic Piston Motor

Overview

Basic Info.

Model NO.	DM16
Cylinder Number	Radial Piston Motor
Drive Mode	Hydraulic Driven Reciprocating Pump
Pump Shaft Position	Horizontal
Type	Radial
Power	Hydraulic
Straight Shaft Swashplate Piston Type	Pressureoil
Radial Plunger Pump Type	/
Application	Machinery Industry
Max. Torque	401n.M
Capacity	100000
Color	Grey
Max. Speed	650r/Min
Material	Cast Iron
Max. Pressure	22MPa
Transport Package	Wooden Box
Specification	DM16
Trademark	HYLEMAN
Origin	China
HS Code	8413503190
Production Capacity	100000

Packaging & Delivery

Package Size 52.00cm * 41.00cm * 55.00cm Package Gross Weight 40.000kg

Product Description

Product Description

HYLEMAN company specialize in Hydraulic Motors, Piston Pumps and Vane Pumps manufacturing, sales and development. Our products are used for Marine, Mining machinery, Construction machinery, Agricultural Machinery, Forestry machinery and so on. We pursuit to be the global leading hydraulic motors and pumps manufacturer and service provider. Customer first is one of our key value. We appreciate cooperating with friends from all over the world. Five Star Italgroup Hydraulic Motor with Low Speed and High Torque (Italian Hydraulic Technology):DM DMG DMP DMY DK DF DS DA BMTZ
Main Features:
1. The five-piston structure with eccentric shaft and lower excitation frequency is adopted, which has the characteristics of low noise;
2. Large starting torque, good low-speed stability, and can run smoothly at very low speeds;
3. The patented plane compensation oil distribution plate has good reliability and less leakage; the piston and the plunger sleeve are sealed with a sealing ring, so it has a high volumetric efficiency;
4. The crankshaft and the connecting rod are supported by rollers, so it has high mechanical efficiency;
5. The direction of rotation is reversible, and the output shaft is allowed to bear certain radial and axial external forces;
6. It has a high power-to-mass ratio and relatively less volume and weight.
Structure Principle:
The plunger cylinder through the pressure oil is acted by the hydraulic pressure to generate thrust P on the plunger body. The thrust acts on the center of the crankshaft through the connecting rod, so that the output shaft rotates, and the oil distribution plate rotates with it. When the position of the plunger body reaches the bottom dead center, the plunger cylinder is connected to the oil return port from the oil distribution plate. The plunger is pushed up by the crankshaft. At this time, the hydraulic oil after the work is returned to the oil tank through the oil distribution plate. Each plunger body is connected to high and low pressure oil in turn, and the driving torque generated by each plunger body to the center of the output shaft is added in the same direction, so that the motor output shaft can obtain a continuous and stable rotating torque. When the direction of oil flow is changed, the direction of rotation of the motor can be changed. If the oil distribution plate is rotated 180° to assemble, the motor can also be reversed.
Model Available:

all friends to visit the beautiful port city - Ningbo to discuss cooperation and seek common development with Hyleman!
Exhibition:

Package:

Our Advantages

Why Choose HYLEMAN?

1. Top QualityDepend on 15 years experience at hydraulic pumps design, research, development and manufacturing, we have a top quality compared with domestic and overseas manufacturers, all of our products are with 1 year warranty time.2. Strict Quality Control SystemWe have the most strict quality control system, all of our products are 100% tested before shipment and each of them has one tracking code in order to make sure they are with good quality to our customers.3. Advanced machinery equipmentAll the machines we have are new CNC machines we imported from Germany and Japan in order to reach more higher demand at the products accuracy.4. Strong Technical teamOur technical team all have more than 20 years experience at pumps design and engineering, our chief engineer has more than 40 years experience at pumps design. We have one 15 persons research team, responsible for pumps improvement research and new products development.5. Competitive PriceBecause of good management, our price is more competitive than the original products, more reasonable than most of the domestic suppliers.6. Fast Delivery timeWe can ship small orders within one week, for big orders such as within 500 PCS pumps or cartridge kits usually we can make shipment within one month.7. Warranty PeriodAll of our products are within 1 year warranty time after the shipment from our factory.8. Considerate ServiceWe can provide technical support at any time if our customers meet any issue during the using, we will provide solutions at the soonest time.9. Long development strategyWe would like to establish a long time strategy cooperation relationship with our customers, to promote HYLEMAN brand together, support and train the potential customer to be our agent at each country and region all over the world.
